What is a Service Tire Monitor System?
A Service Tire Monitor System (TPMS) is an electronic system designed to monitor the air pressure in a vehicle’s tires. Its primary purpose is to enhance safety and fuel efficiency by alerting the driver when one or more tires are significantly under-inflated.
The TPMS consists of sensors mounted on each wheel that measure the tire pressure. These sensors transmit the pressure data wirelessly to a central receiver or control module, typically located in the vehicle’s body.
The control module processes the data and illuminates a warning light on the instrument cluster if the pressure in any tire falls below a predetermined threshold.
The system works by continuously monitoring the tire pressure and comparing it to the recommended levels set by the vehicle manufacturer.
When a tire’s pressure drops below the specified limit, the TPMS triggers a warning light, prompting the driver to take action and inflate the underinflated tire(s) to the proper pressure.
By maintaining proper tire inflation, the TPMS helps improve vehicle safety by reducing the risk of tire failure or blowouts, which can lead to loss of control or accidents.
Additionally, properly inflated tires enhance fuel efficiency, extend tire life, and improve overall vehicle handling and braking performance.
Importance of Tire Pressure Monitoring
Proper tire pressure monitoring is crucial for ensuring safety, maximizing fuel efficiency, and extending the lifespan of your tires. Underinflated tires can lead to a range of issues that compromise your driving experience and put you at risk on the road.
Safety Benefits:
Maintaining the correct tire pressure is essential for optimal vehicle handling, traction, and braking performance. Underinflated tires can cause increased stopping distances, reduced cornering stability, and a higher risk of hydroplaning on wet surfaces.
Conversely, overinflated tires can lead to decreased traction and a harsher ride, increasing the likelihood of losing control during sudden maneuvers or collisions.
Fuel Efficiency: Underinflated tires create more rolling resistance, forcing your vehicle’s engine to work harder and consume more fuel. According to industry estimates, properly inflated tires can improve fuel efficiency by up to 3%, translating to significant cost savings over time.
Tire Life: Improper tire pressure accelerates tread wear, causing premature aging and the need for more frequent tire replacements. Underinflated tires experience excessive heat buildup and uneven wear patterns, while overinflated tires suffer from increased wear in the center of the tread. Maintaining the recommended tire pressure can extend the lifespan of your tires by up to 20%, reducing replacement costs and contributing to a more eco-friendly driving experience.
Components of a TPMS
A Service Tire Monitor System (TPMS) consists of several key components that work together to monitor and report tire pressure levels. These components include:
Sensors: Each tire is equipped with a sensor that measures the air pressure inside the tire. These sensors are typically mounted on the wheel rim or valve stem and use battery power to operate. They transmit pressure data wirelessly to the receiver.
Receivers: The receiver is a module located within the vehicle that collects the pressure data transmitted by the sensors. It acts as a central hub, receiving signals from all tire sensors and relaying the information to the electronic control unit (ECU).
Electronic Control Unit (ECU): The ECU is the brain of the TPMS system. It processes the pressure data received from the receiver and determines if any tire is underinflated or overinflated. The ECU is programmed with the recommended tire pressure levels for the specific vehicle.

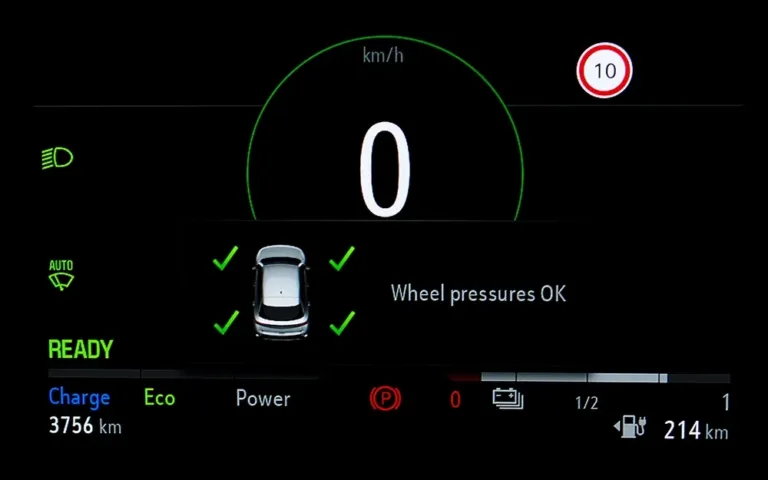

Display: The TPMS display is typically integrated into the vehicle’s instrument cluster or dashboard. It provides visual and audible warnings to the driver when a tire pressure issue is detected. The display may show the pressure level for each individual tire or simply indicate which tire(s) need attention.
These components work seamlessly to continuously monitor tire pressure levels while the vehicle is in operation.
If a significant pressure deviation is detected, the TPMS system alerts the driver, allowing them to address the issue promptly and maintain proper tire inflation for optimal safety, fuel efficiency, and tire life.
Types of TPMS
There are two main types of Tire Pressure Monitoring Systems (TPMS) – direct and indirect. Additionally, TPMS can be categorized as Original Equipment Manufacturer (OEM) systems installed by the vehicle manufacturer or aftermarket systems installed after the vehicle’s production.
Direct TPMS
Direct TPMS use physical tire pressure sensors, typically mounted on each wheel’s air valve stem. These battery-powered sensors constantly measure the air pressure inside the tire and transmit this data wirelessly to the vehicle’s central receiver or body control module. Direct systems provide real-time, accurate pressure readings for each individual tire.
Indirect TPMS
Indirect TPMS do not have dedicated tire pressure sensors. Instead, they rely on readings from the vehicle’s anti-lock braking system (ABS) wheel speed sensors.
By monitoring the rotational speeds of each wheel, the system can infer if a tire is under-inflated based on its increased diameter and rotational characteristics compared to the other tires. Indirect systems are less expensive but not as precise as direct systems.
OEM TPMS
Most modern vehicles come equipped with an OEM TPMS installed by the manufacturer to meet regulatory requirements.
These factory-fitted systems are designed to integrate seamlessly with the vehicle’s electronics and provide direct communication to the instrument cluster for low-pressure warnings.
Aftermarket TPMS
For older vehicles without a TPMS or to upgrade existing systems, aftermarket TPMS kits are available. These can be direct or indirect systems and often include additional features like high-temperature alerts or smartphone connectivity.
Proper installation and programming are crucial for aftermarket TPMS to function correctly with the vehicle.
How TPMS Works
The Tire Pressure Monitoring System (TPMS) uses sensors mounted inside each tire to continuously monitor the air pressure. These sensors measure the pressure and transmit the data wirelessly to a central receiver in the vehicle.
The TPMS sensors are battery-powered and use radio frequency (RF) signals to communicate with the receiver. The sensors can transmit not only the current pressure readings but also other data like tire temperature and sensor identification codes.
The receiver is typically connected to the vehicle’s electronic control unit (ECU) or body control module (BCM). When the pressure in one or more tires falls below a predetermined threshold, the ECU triggers a warning light on the instrument cluster to alert the driver.
Most TPMS systems have two pressure thresholds: a low pressure warning level and a critically low pressure warning level.
The low pressure warning is designed to notify the driver when the tire pressure is underinflated, allowing them to take corrective action before the situation becomes dangerous.
The critically low pressure warning indicates that the tire pressure has dropped to an unsafe level, and the tire may be at risk of failure or rapid air loss.
In addition to pressure warnings, some advanced TPMS systems can also detect slow leaks, rapid air loss events, and even distinguish between individual tire positions. This information helps drivers and technicians identify and address issues more effectively.
TPMS Regulations and Standards
The importance of proper tire inflation and the risks associated with under-inflated tires have led to government mandates and safety standards for Tire Pressure Monitoring Systems (TPMS) in many countries.
These regulations aim to improve vehicle safety, reduce emissions, and increase fuel efficiency by ensuring that drivers are alerted when their tires are significantly under-inflated.
In the United States, the Transportation Recall Enhancement, Accountability, and Documentation (TREAD) Act of 2000 mandated the installation of TPMS in all new passenger vehicles sold after September 1, 2007.
The National Highway Traffic Safety Administration (NHTSA) established Federal Motor Vehicle Safety Standard (FMVSS) No. 138, which outlines the specific requirements for TPMS in the U.S.
According to FMVSS No. 138, TPMS must warn drivers when one or more tires are under-inflated by 25% or more below the recommended cold tire inflation pressure.
The warning must be displayed in the form of a telltale indicator on the instrument panel, and it must remain illuminated as long as the under-inflation condition persists.
In Europe, the European Union (EU) introduced similar regulations with the implementation of ECE Regulation 64 in 2012.
This regulation requires all new passenger vehicles sold in the EU to be equipped with TPMS that meets specific performance and labeling requirements.
Beyond government mandates, several industry organizations have established standards and best practices for TPMS design, installation, and maintenance.
The Tire and Rubber Association of Canada (TRAC) and the Rubber Manufacturers Association (RMA) in the U.S. have published guidelines and recommendations for TPMS implementation and service procedures.
Compliance with these regulations and standards is crucial for vehicle manufacturers and aftermarket TPMS suppliers to ensure the safety and reliability of their products. Failure to meet the mandated requirements can result in fines, recalls, and potential liability issues.
TPMS Maintenance and Repair
The Service Tire Monitor System (TPMS) requires regular maintenance and occasional repairs to ensure its proper functioning.
One of the most common maintenance tasks is replacing the sensor batteries, which typically have a lifespan of 5-10 years, depending on the vehicle make and model.
Sensor battery replacement is a crucial task as a dead battery can lead to inaccurate tire pressure readings or no readings at all.
The process involves dismounting the tire, removing the old sensor, installing a new sensor with a fresh battery, and remounting the tire.
It’s essential to follow the manufacturer’s instructions carefully and use the recommended sensor types to avoid compatibility issues.
Another important aspect of TPMS maintenance is the relearn or reset procedure. This process is necessary when new sensors are installed, tires are rotated, or after certain repairs or maintenance tasks.
The relearn procedure synchronizes the new sensors with the vehicle’s TPMS control module, ensuring accurate tire pressure monitoring.
The relearn process varies among vehicle manufacturers, but it typically involves using a diagnostic tool or following a specific sequence of steps, such as driving the vehicle at a certain speed or pressing specific buttons on the dashboard.
Failure to perform the relearn procedure correctly can result in inaccurate tire pressure readings or warning light issues.
In addition to sensor battery replacement and relearn procedures, TPMS maintenance may also involve inspecting and replacing damaged or corroded sensors, checking the wiring harnesses for any damage or loose connections, and ensuring the proper functioning of the TPMS control module.
It’s important to have TPMS maintenance and repairs performed by trained professionals who have the necessary tools and expertise. Improper handling or installation can lead to system malfunctions, compromising the safety and reliability of the TPMS.
TPMS Diagnostic Tools
TPMS diagnostic tools are essential for servicing and maintaining tire pressure monitoring systems. These tools allow technicians to diagnose issues, reprogram sensors, and perform various functions related to TPMS.
One of the primary TPMS diagnostic tools is the TPMS scan tool. This tool can read and display tire pressure and temperature data from the sensors, as well as retrieve diagnostic trouble codes (DTCs) from the vehicle’s TPMS control module.
Advanced scan tools can also perform bidirectional controls, such as triggering the TPMS warning light or initiating a sensor relearn procedure.
Another important tool is the TPMS programming tool, which is used to program new sensors or reprogram existing ones.
This tool can clone sensor data, create new sensor IDs, and write the necessary information to the sensors.
Programming tools are necessary when replacing TPMS sensors or performing certain maintenance tasks.
Some diagnostic tools combine both scanning and programming capabilities into a single device, providing technicians with a comprehensive solution for TPMS service.
These tools often feature user-friendly interfaces, vehicle-specific coverage, and the ability to update software and sensor data as new models and technologies are introduced.
In addition to dedicated TPMS tools, some general automotive diagnostic platforms, such as those used for engine and transmission diagnostics, may also include TPMS functionality.
These platforms can integrate TPMS data with other vehicle systems, providing a more comprehensive diagnostic experience.
Proper training and familiarity with TPMS diagnostic tools are crucial for technicians working on modern vehicles.
Incorrect use or mishandling of these tools can lead to improper sensor programming, inaccurate data, and potential safety issues.
Manufacturers and tool providers often offer training resources and certifications to ensure technicians are proficient in using their TPMS diagnostic solutions.
TPMS Calibration and Resets
Proper calibration and periodic resets are crucial for ensuring the accurate operation of your vehicle’s Tire Pressure Monitoring System (TPMS).
Over time, factors such as temperature fluctuations, tire wear, and sensor drift can affect the accuracy of the TPMS readings, necessitating regular maintenance.
One of the key aspects of TPMS calibration is setting the correct placard pressure. The placard pressure is the recommended tire pressure specified by the vehicle manufacturer, typically found on a sticker located on the driver’s side door jamb or in the owner’s manual.
This pressure is optimized for your vehicle’s specific make, model, and load-carrying capacity, ensuring proper tire inflation for optimal performance, safety, and fuel efficiency.
To calibrate the TPMS, you’ll need to inflate all four tires to the placard pressure and then perform a sensor relearning procedure.
Sensor relearning is a process that allows the TPMS control module to identify and associate each individual tire pressure sensor with its corresponding wheel position.
This step is crucial because the sensors are not permanently assigned to specific wheel locations, and their positions may change during tire rotations or replacements.
The sensor relearning process varies among vehicle manufacturers, but it typically involves using a dedicated TPMS tool or following a specific sequence of steps outlined in the owner’s manual.
Some vehicles may require the use of a diagnostic scan tool or a trip to the dealership or repair shop for proper TPMS calibration and sensor relearning.
Regular TPMS calibration and resets are recommended after tire rotations, replacements, or when the system indicates inaccurate readings.
Neglecting these maintenance procedures can lead to inaccurate tire pressure readings, compromising vehicle safety and potentially reducing fuel efficiency and tire life.
Future of TPMS Technology
The future of Tire Pressure Monitoring Systems (TPMS) technology promises exciting advancements and deeper integration with other vehicle systems.
As automotive technology continues to evolve, TPMS will play a crucial role in enhancing safety, efficiency, and overall vehicle performance.
One of the significant developments in TPMS technology is the integration with Advanced Driver Assistance Systems (ADAS).
ADAS encompasses a range of technologies designed to assist drivers and improve safety, such as lane departure warning systems, adaptive cruise control, and automatic emergency braking.
By integrating TPMS data with ADAS, vehicles can make more informed decisions and provide timely warnings or interventions based on tire condition and performance.
For example, if a tire loses pressure rapidly due to a puncture, the TPMS can immediately alert the ADAS, which can then initiate appropriate safety measures, such as activating hazard lights, reducing vehicle speed, or even bringing the vehicle to a controlled stop.
This seamless integration enhances overall vehicle safety and reduces the risk of accidents caused by sudden tire failures.
Another area of development is the use of advanced sensors and communication technologies within TPMS.
Future systems may incorporate more sophisticated sensors capable of monitoring not only tire pressure but also temperature, tread depth, and other critical parameters.
These sensors could communicate wirelessly with the vehicle’s central computer, providing real-time data for predictive maintenance and optimized tire management.
Additionally, TPMS may leverage cloud-based systems and connectivity to enable remote monitoring and predictive analytics.
By analyzing data from multiple vehicles and tire manufacturers, predictive models can be developed to anticipate potential tire issues and recommend proactive maintenance or replacements.
This proactive approach can help reduce downtime, improve fuel efficiency, and extend the lifespan of tires.
Furthermore, the integration of TPMS with vehicle telematics and fleet management systems is expected to gain traction, particularly in commercial and industrial applications.
This integration will allow fleet managers to monitor tire conditions remotely, optimize tire rotations, and plan maintenance schedules more effectively, reducing operational costs and improving overall fleet efficiency.
As vehicle electrification continues to gain momentum, TPMS technology will also need to adapt to the unique requirements of electric vehicles (EVs).
EVs have different weight distributions and torque characteristics compared to conventional vehicles, which may impact tire wear and performance.
TPMS systems tailored specifically for EVs could provide valuable insights into optimizing range, efficiency, and overall battery management.
Overall, the future of TPMS technology promises enhanced safety, improved vehicle performance, and increased operational efficiency through seamless integration with other vehicle systems, advanced sensors, predictive analytics, and connectivity.
As automotive technology continues to evolve, TPMS will play a vital role in shaping the driving experience of the future.
