Introduction to Car Tires
Car tires are one of the most critical components of a vehicle, responsible for providing traction, stability, and a smooth ride. These seemingly simple rubber rings are engineering marvels, carefully designed and constructed using a variety of materials to meet the demanding requirements of modern vehicles.

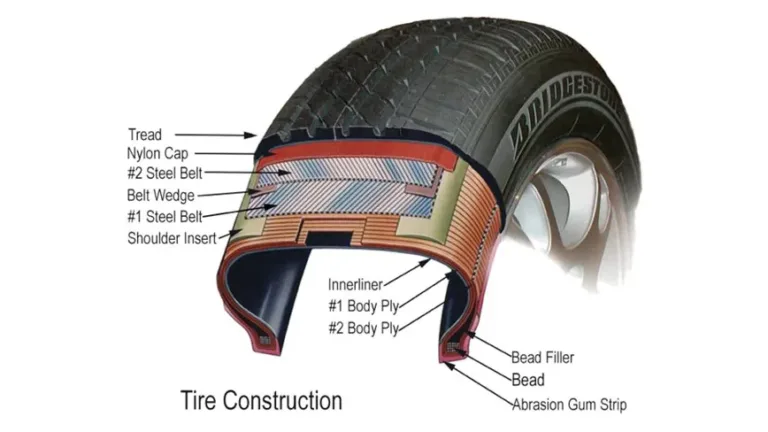

Tires are composed of several layers, each serving a specific purpose. The outermost layer is the tread, which grips the road surface and provides traction. Beneath the tread lies the belts, typically made of steel or reinforced textile, which give the tire its strength and shape. The innermost layer is the casing or carcass, which is made of rubber and reinforced with textile or steel cords, providing flexibility and durability.
The materials used in tire construction play a crucial role in determining the tire’s performance, safety, and longevity. While natural and synthetic rubbers form the backbone of tire construction, various other materials, such as carbon black, silica, and specialized compounds, are incorporated to enhance specific properties like grip, rolling resistance, and wear resistance.
Understanding the intricate composition of car tires is essential for appreciating the engineering marvel that enables our vehicles to navigate the roads safely and efficiently.
Natural Rubber
Natural rubber is the primary raw material used in tire construction, providing the essential elasticity and resilience required for tires. Derived from the milky sap of the Hevea brasiliensis tree, natural rubber is a polymer of isoprene molecules that exhibit unique properties.
Natural rubber is primarily sourced from rubber tree plantations located in tropical regions, with major producers including Thailand, Indonesia, Malaysia, and Vietnam. The rubber trees are carefully tapped, and the latex sap is collected and processed to extract the natural rubber.
One of the key properties of natural rubber is its high elasticity, which allows tires to deform under load and regain their original shape when the load is removed. This property is crucial for absorbing shocks and providing a smooth ride. Additionally, natural rubber exhibits excellent resistance to abrasion, making it suitable for the demanding conditions of tire treads.
In tire construction, natural rubber is used as the primary component of the tire’s inner liner, which forms an airtight layer to retain the inflation pressure. It is also a crucial ingredient in the tire’s sidewall and tread compounds, contributing to the overall durability and performance of the tire.
While natural rubber possesses exceptional properties, it is often blended with other materials, such as synthetic rubbers and reinforcing fillers, to enhance specific characteristics and meet the diverse performance requirements of modern tires.
Synthetic Rubber
While natural rubber is an essential component in tire construction, synthetic rubbers play a crucial role in enhancing the performance and durability of modern tires. These man-made elastomers offer several advantages over their natural counterparts.
One of the most commonly used synthetic rubbers in tire manufacturing is styrene-butadiene rubber (SBR). This material is known for its excellent abrasion resistance, which helps extend the tread life of tires. Additionally, SBR provides good traction and handling characteristics, making it suitable for various driving conditions.
Another synthetic rubber widely employed in tire production is butadiene rubber (BR). This material exhibits superior resistance to heat buildup, a critical factor in high-performance tires. BR also contributes to improved rolling resistance, which translates into better fuel efficiency for vehicles.
Tire manufacturers often blend different types of synthetic rubbers to achieve the desired balance of properties. For instance, a combination of SBR and BR can offer a tire with excellent tread wear, traction, and heat resistance.
Compared to natural rubber, synthetic rubbers offer several advantages in tire construction. They can be engineered to meet specific performance requirements, such as improved wet grip, reduced rolling resistance, or enhanced durability. Additionally, synthetic rubbers are less susceptible to environmental factors like temperature fluctuations and UV radiation, ensuring consistent performance throughout the tire’s lifespan.
In modern tire manufacturing, synthetic rubbers are strategically incorporated into various components, including the tread compound, inner liner, and sidewalls. Their unique properties contribute to optimizing the overall performance, safety, and longevity of the tire.
Carbon Black
Carbon black is a crucial ingredient in modern tire construction, playing a vital role in enhancing various properties of the rubber compound. It is a fine black powder composed of elemental carbon particles that are produced through the controlled combustion or thermal decomposition of hydrocarbons, such as oil or natural gas.
The primary function of carbon black in tires is to reinforce the rubber matrix and improve its mechanical properties. When incorporated into the rubber compound, carbon black particles disperse evenly, creating a network of interconnected particles within the rubber matrix. This network acts as a reinforcing filler, increasing the strength, stiffness, and abrasion resistance of the rubber.
Carbon black also contributes to the overall durability and longevity of tires. Its presence in the rubber compound helps to resist cracking, tearing, and other forms of degradation caused by environmental factors such as heat, ozone, and ultraviolet radiation. This enhances the tire’s resistance to aging and ensures better performance over an extended period.
Furthermore, carbon black plays a crucial role in enhancing the tire’s grip and traction on various road surfaces. The high surface area and irregular shape of carbon black particles create a rougher surface on the tire tread, increasing friction and improving grip, especially in wet conditions.
In addition to its functional benefits, carbon black also imparts a distinct black color to tires, which is not only aesthetically pleasing but also helps to absorb heat, reducing the risk of overheating and premature failure.
Silica
Silica, also known as silicon dioxide (SiO2), is a crucial component in modern tire construction. It serves as an alternative to carbon black, which has traditionally been used as a reinforcing filler in tires. The incorporation of silica offers several advantages over carbon black, making it an increasingly popular choice among tire manufacturers.
One of the primary advantages of silica is its ability to enhance the tire’s rolling resistance, which directly impacts fuel efficiency. By reducing the amount of energy lost due to friction between the tire and the road surface, silica-filled tires can significantly improve a vehicle’s fuel economy. This is particularly important in today’s environmentally conscious world, where reducing carbon emissions and improving fuel efficiency are top priorities.
In addition to its fuel-saving properties, silica also contributes to improved wet grip performance. The silica particles in the tire compound interact with the rubber polymer chains, creating a more flexible and adaptable structure. This increased flexibility allows the tire to better conform to the road surface, providing enhanced traction and braking performance, especially on wet or slippery surfaces.
Furthermore, silica plays a crucial role in tire construction by acting as a reinforcing filler. It helps to strengthen the tire’s structure, improving its durability and resistance to wear and tear. This is achieved through the strong chemical bonds formed between the silica particles and the rubber polymer chains, creating a more robust and resilient tire compound.
To maximize the benefits of silica, tire manufacturers often use a combination of silica and other fillers, such as carbon black or silanes. These hybrid compounds leverage the strengths of each component, resulting in tires with optimized performance characteristics tailored to specific applications or driving conditions.
Steel Belts
Steel belts are a critical component in the construction of modern radial tires. Their primary purpose is to provide strength, durability, and resistance to punctures and impacts. The steel belts act as a stabilizing layer, helping to maintain the tire’s shape and preventing excessive flexing or distortion under heavy loads or high speeds.
Typically, two or more steel belt layers are used in a tire’s construction. These belts are made from high-tensile steel wires, which are tightly wound and coated with a thin layer of brass or other corrosion-resistant material. The most common types of steel used in tire belts are high-strength, low-alloy (HSLA) steels and ultra-high-strength steels.
The construction process of steel belts involves several steps. First, individual steel wires are drawn and coated with a protective layer. These wires are then woven or spiraled together to form a continuous belt. The belt is then wrapped around a cylindrical drum, creating multiple overlapping layers. This process is repeated until the desired number of steel belt layers is achieved.
The steel belts are positioned between the tire’s carcass (the main body of the tire) and the tread. They are carefully aligned and tensioned to ensure uniform distribution of forces and optimal performance. The belts are also anchored to the tire’s bead bundles (the rigid reinforced edges that mount onto the wheel rim) to prevent slippage or separation during use.
Textile Reinforcements
Textile reinforcements play a crucial role in the construction of car tires, providing strength and durability to the tire structure. These materials are typically made from synthetic fibers such as polyester, nylon, or aramid.
Polyester is one of the most commonly used textile reinforcements in tires. It offers excellent strength, resistance to heat and abrasion, and dimensional stability. Polyester cords are often used in the tire’s belt and carcass plies, helping to distribute the load and maintain the tire’s shape under various driving conditions.
Nylon, another popular textile reinforcement, is known for its high tensile strength and resistance to fatigue and impact. Nylon cords are frequently used in the tire’s carcass plies, enhancing the tire’s overall durability and resistance to punctures.
Aramid fibers, such as Kevlar, are also employed in tire construction due to their exceptional strength-to-weight ratio and resistance to heat and abrasion. These fibers are typically used in high-performance tires or tires designed for heavy-duty applications, providing enhanced durability and handling characteristics.
The textile reinforcements are strategically positioned within the tire’s structure, forming a network of interlaced cords or plies. This network helps distribute the forces acting on the tire, ensuring even load distribution and minimizing the risk of tire failure. The specific arrangement and orientation of the textile reinforcements contribute to the tire’s overall performance characteristics, such as handling, ride comfort, and treadwear.
Tire Sidewall Components
The sidewall of a tire is a crucial component that plays a vital role in the overall performance and durability of the tire. It is constructed using a combination of various materials, each serving a specific function. The main materials used in the construction of tire sidewalls are:
- Rubber Compounds: The primary material used in tire sidewalls is a rubber compound. This compound typically consists of natural rubber, synthetic rubber, or a blend of both. The rubber provides flexibility, resistance to abrasion, and helps to absorb shocks and impacts.
- Reinforcing Fabrics: To enhance the strength and stability of the sidewall, reinforcing fabrics such as polyester, nylon, or rayon are incorporated into the rubber compound. These fabrics are arranged in a crisscross pattern, forming a reinforcing layer known as the tire carcass ply. This ply helps to resist the forces exerted on the tire during cornering, braking, and acceleration.
- Bead Wires: Located at the inner circumference of the tire, bead wires are high-tensile steel wires coated with brass or other coatings. These wires anchor the tire to the wheel rim, ensuring a secure fit and preventing the tire from separating from the rim during operation.
- Gum Strips: Gum strips, also known as chafers, are rubber strips applied to the inner surface of the tire sidewall. They protect the reinforcing fabrics from chafing against the wheel rim and provide additional cushioning.
The construction process of tire sidewalls involves several steps. First, the reinforcing fabrics are coated with a rubber compound and arranged in the desired pattern. Next, the bead wires are positioned at the inner circumference. The coated reinforcing fabrics are then wrapped around a cylindrical drum, forming the tire carcass. The gum strips are applied to the inner surface, and additional rubber compounds are added to create the desired sidewall thickness and profile. Finally, the sidewall is cured under high heat and pressure to vulcanize the rubber and achieve the desired shape and strength.
The materials used in tire sidewalls are carefully selected and combined to provide the necessary strength, flexibility, and durability required for various driving conditions and vehicle types. Proper sidewall construction is crucial for ensuring optimal tire performance, safety, and longevity.
Tire Tread Compounds
The tire tread is the outer rubber portion that makes contact with the road surface. Its composition and design play a crucial role in determining the tire’s performance characteristics, such as traction, wear resistance, and rolling resistance.
Tread compounds are carefully formulated using a variety of materials to achieve the desired properties. The primary components include:
- Rubber Polymers: Both natural and synthetic rubbers are used in tread compounds. Natural rubber provides excellent grip and tear resistance, while synthetic rubbers like styrene-butadiene rubber (SBR) and butadiene rubber (BR) contribute to abrasion resistance and improved rolling resistance.
- Reinforcing Fillers: Carbon black and silica are the most common reinforcing fillers used in tread compounds. Carbon black improves the tire’s strength, abrasion resistance, and heat dissipation. Silica enhances wet grip, rolling resistance, and overall performance, especially in passenger car tires.
- Oils and Plasticizers: These substances are added to improve the compound’s processability and flexibility. Oils, such as aromatic and naphthenic oils, act as plasticizers, enhancing the compound’s workability during manufacturing and improving its low-temperature flexibility.
- Antioxidants and Antiozonants: These additives protect the rubber from oxidation and ozone degradation, extending the tire’s service life and preventing premature cracking or aging.
- Curatives and Accelerators: These chemicals initiate and control the vulcanization process, where the rubber compound is cross-linked to achieve the desired mechanical properties.
The specific formulation of tread compounds varies depending on the intended use of the tire, such as passenger cars, trucks, or high-performance vehicles. Additionally, tread design plays a crucial role in tire performance. The pattern, depth, and orientation of the tread grooves influence factors like wet grip, noise levels, and hydroplaning resistance.
Tire manufacturers continuously innovate and refine tread compounds and designs to improve performance, durability, and environmental friendliness while adhering to stringent safety standards.
Environmental and Sustainability Considerations
As concerns over environmental impact and sustainability have grown, the tire industry has been making efforts to reduce its carbon footprint and develop more eco-friendly products and processes. One significant area of focus is tire recycling and the responsible disposal of end-of-life tires.
Tire recycling has become increasingly important as millions of tires reach the end of their service life each year. These used tires can be repurposed in various ways, such as being ground into crumb rubber for use in playground surfaces, rubberized asphalt, or as a fuel source in cement kilns. Additionally, some tire manufacturers have implemented programs to collect and recycle used tires, helping to divert them from landfills and reduce waste.
Another aspect of sustainability in tire manufacturing involves the use of eco-friendly materials. Manufacturers are exploring the use of sustainable and renewable resources, such as silica derived from rice husk ash or natural fibers like kenaf or hemp, as reinforcing agents in tire compounds. These materials can potentially replace or reduce the need for traditional petroleum-based materials, lowering the overall environmental impact of tire production.
Sustainable manufacturing practices are also being adopted by tire companies. This includes efforts to reduce energy consumption, water usage, and greenhouse gas emissions during the manufacturing process. Some companies have implemented closed-loop water systems, energy-efficient equipment, and renewable energy sources like solar or wind power to power their facilities.
Furthermore, tire manufacturers are working on developing tires with improved rolling resistance, which can lead to better fuel efficiency and lower carbon emissions from vehicles. Advanced tread compounds and tire designs are being explored to achieve this goal while maintaining or enhancing other performance characteristics.
As consumer demand for environmentally friendly products continues to grow, the tire industry is likely to continue pursuing sustainable and eco-friendly initiatives, from material sourcing to manufacturing processes and end-of-life management, in an effort to reduce its environmental footprint and contribute to a more sustainable future.
Future Trends and Innovations
The tire industry is continuously evolving, driven by the pursuit of enhanced performance, safety, and sustainability. Emerging materials and technologies are reshaping the way tires are designed and constructed, offering exciting possibilities for the future.
One of the most promising areas of innovation is the development of advanced rubber compounds. Researchers are exploring the use of specialized polymers and nanocomposites that can improve tire properties such as rolling resistance, wear resistance, and grip performance. These materials have the potential to significantly reduce fuel consumption and extend the lifespan of tires.
Another area of focus is the integration of smart sensors and electronics into tire construction. Intelligent tire systems can monitor and transmit real-time data on factors like temperature, pressure, and tread depth, enabling predictive maintenance and optimized performance. Additionally, self-healing tire technologies are being explored, where the tire material can autonomously repair minor punctures or damage, reducing the risk of blowouts and increasing safety.
Sustainable and eco-friendly tire manufacturing is also gaining momentum. Researchers are investigating the use of renewable and recycled materials, such as plant-based fibers, recycled rubber, and bio-based additives, to reduce the environmental impact of tire production. Additionally, advances in tire retreading and recycling processes are being made, promoting a circular economy approach to tire lifecycle management.
Furthermore, the advent of electric vehicles and autonomous driving technologies is driving innovation in tire design. Tires optimized for electric vehicles need to address unique challenges such as increased weight and torque, while tires for autonomous vehicles may require enhanced durability and self-monitoring capabilities.
Overall, the future of tire construction promises exciting advancements in materials, technologies, and manufacturing processes, paving the way for safer, more efficient, and environmentally conscious tire solutions.
